RESOURCES & DOWNLOADS

INSTALLATION GUIDANCE

Follet


Find everything you need to install the Icezone for your Follett Horizon Chewblet Ice Machines. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Follett Symphony Ice & Water Dispenser. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Follett Vision Dispenser. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.



Hoshizaki


Find everything you need to install the Icezone for your Hoshizaki DCM-270 Ice & Water Dispenser. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Hoshizaki DCM-500 Ice & Water Dispenser. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Hoshizaki IM 500 GRID Ice Machines. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Hoshizaki KM Style Ice Machines. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.



Ice-O-Matic


Find everything you need to install the Icezone for your Ice-O-Matic Standard Top Mount Ice Machine. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.



Manitowoc


Find everything you need to install the Icezone for your Manitowoc Indigo. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Manitowoc Q-Series Ice Machine. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Manitowoc S-Series Ice Machine. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.



Scotsman


Find everything you need to install the Icezone for your Scotsman HID312 Meridian Ice & Water Dispenser. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Scotsman Prodigy Cuber. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.



General


Find everything you need to install the Icezone for your Single Horizontal Evaporator Style Ice Machine. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.

Find everything you need to install the Icezone for your Top Mounted Ice Storage Bins. The downloadable document will walk you through the full process, from setup to first use.

  Download the pdf.



LAMP REPLACEMENT

Before You Start

When to replace the lamp your Icezone unit, and what precautions to take when doing so

When To Replace The Lamp In An Icezone Unit


  1. End of Lamp Life: After 9,000 hours of use, the lamp has reached the end of its useful life and must be replaced to ensure Icezone continues to operate effectively. A steady red status indicator light will signal this need.

  2. Contaminated Environment: If the lamp is operating in a contaminated environment, it should be replaced to maintain the effectiveness of Icezone. Although the status indicator light will remain a steady blue (normal), it is recommended to check the lamp every three months.


Precautions To Take When Replacing The Lamp


  Cooling Time: Allow the lamp to cool for 5-minutes before attempting lamp removal from the Icezone unit

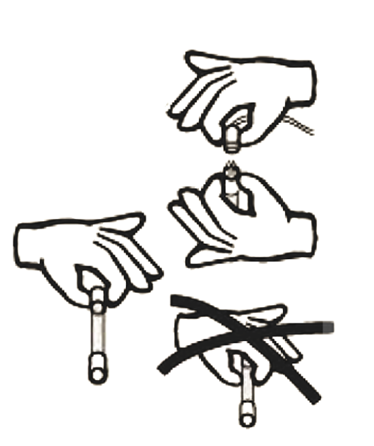

  Avoid Contamination: Avoid touching the glass section of the lamp. If contact occurs, immediately clean the glass with isopropyl alcohol to prevent damage from contamination


  Lamp Disposal: Dispose of the lamp in accordance with local hazardous waste regulations, as it contains mercury vapor, which is harmful to humans and animals. Alternatively, you may return the lamp to Biozone using the packaging provided with the new lamp.


Step 1

Lamp removal process

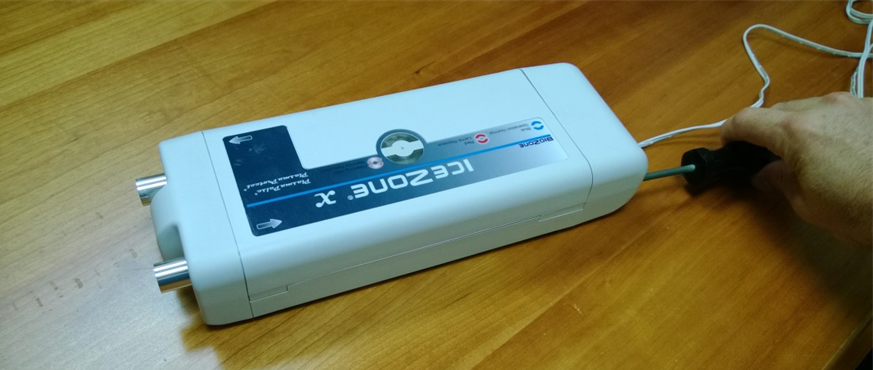

  1. Unplug the wall adapter from the wall to turn off the Icezone unit

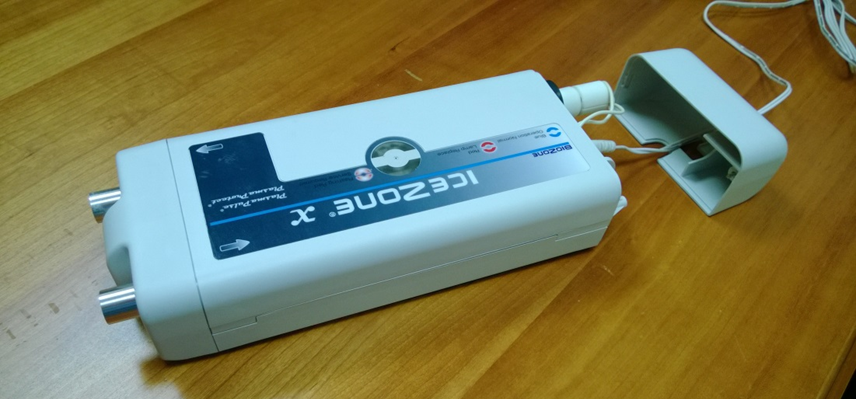

  2. Remove the service cover from the Icezone unit by removing the cover retaining screw

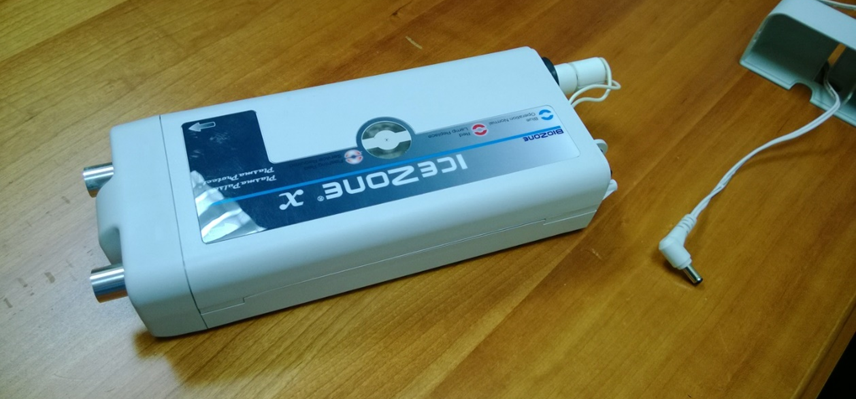

  3. Unplug the DC plug to ensure the Icezone unit is not connected to power

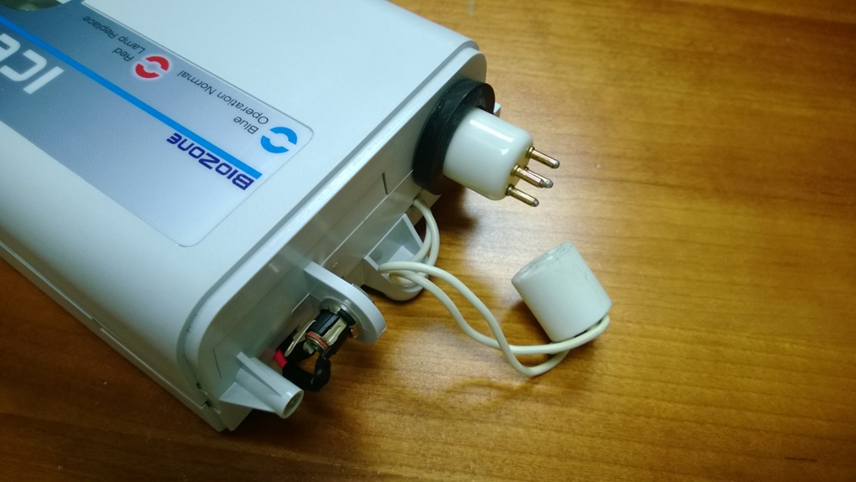

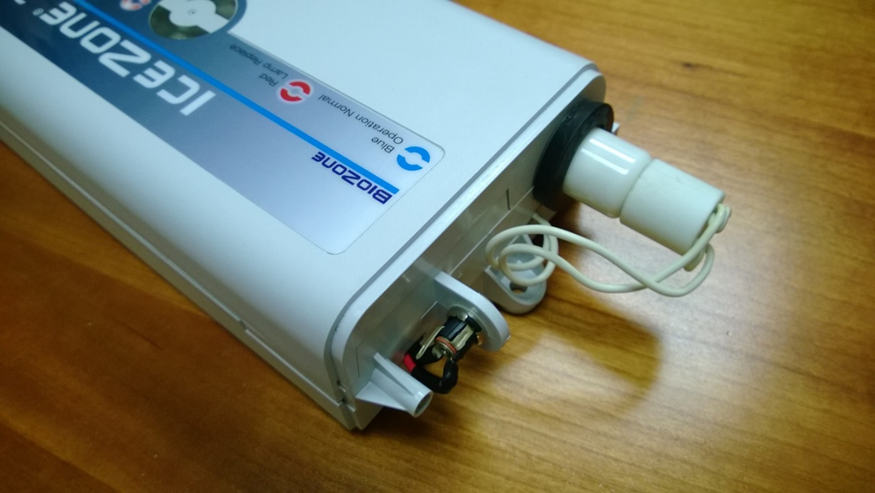

  4. Remove the lamp plug

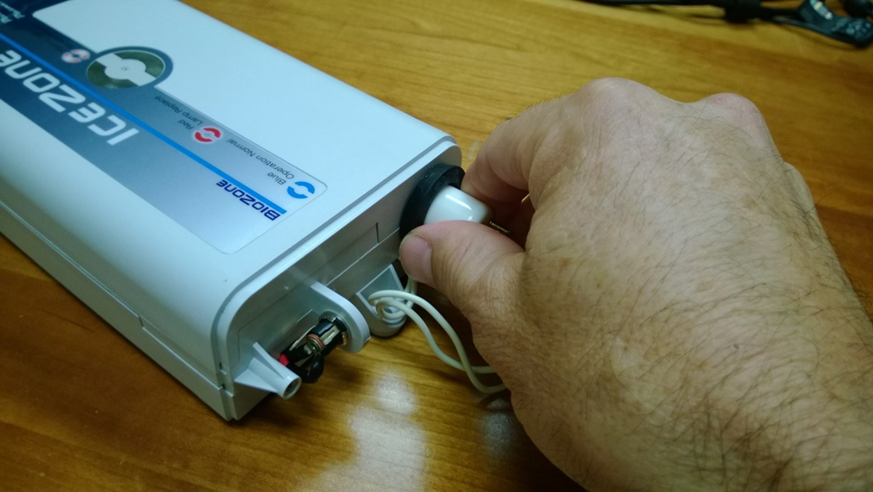

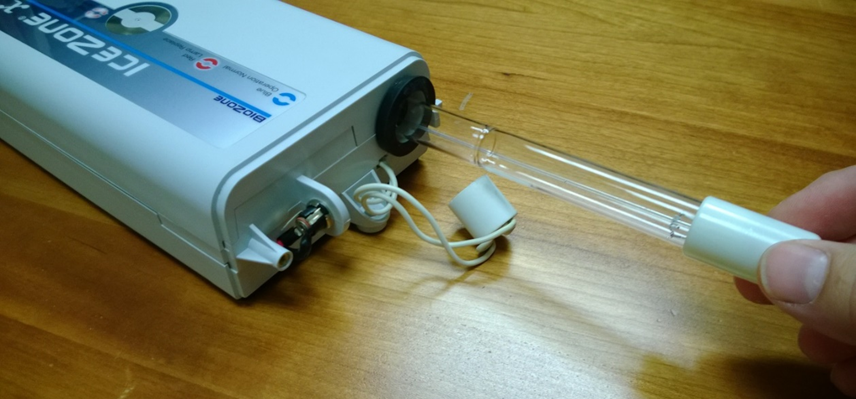

  5. Remove the lamp by grasping the white ceramic insulator. Caution: See safety recommendations at the 'Before You Start' stage of this tutorial regarding safe handling of the lamp.

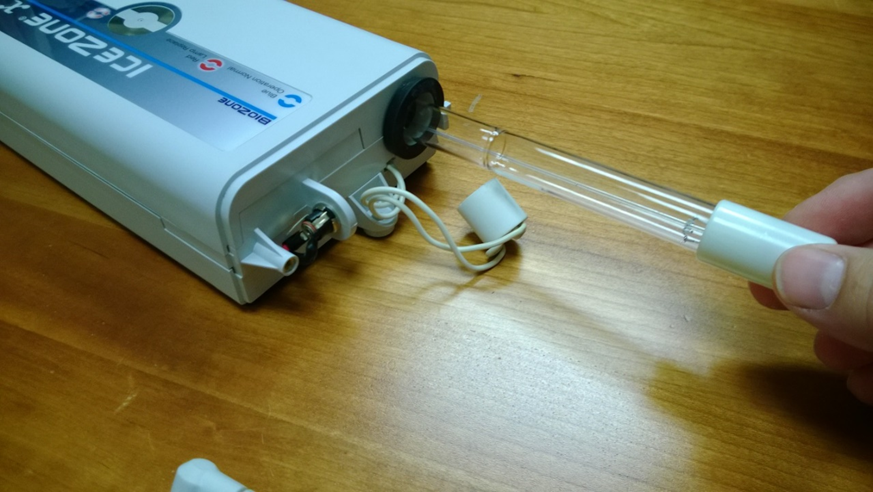

  6. Pull the lamp out of the Icezone unit completely

Step 2

Installing the new lamp

  1. Install the new lamp by inserting into the Icezone by grasping the white ceramic insulator

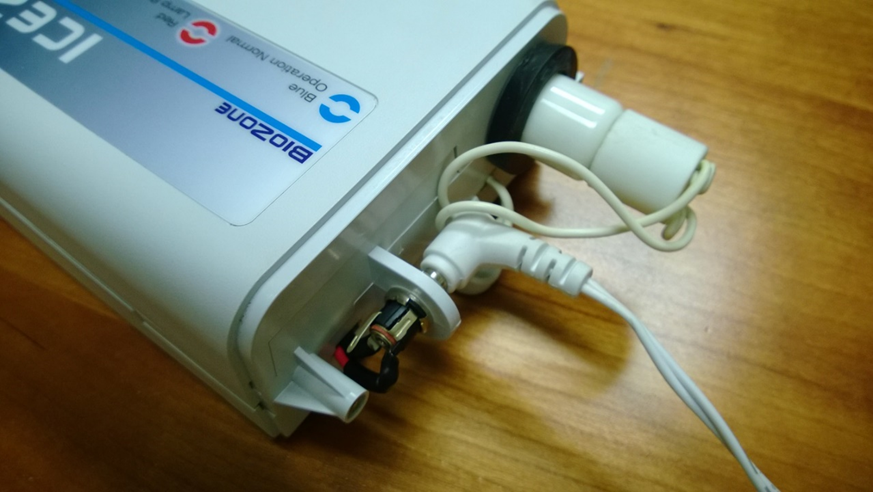

  2. Reconnect the lamp connector being sure to observe the orientation of the pins. If the connector does not connect easily, rotate 90-degrees and try again

Step 3

Reconnecting the Icezone unit

  1. Reconnect the DC power connector
  2. Reinstall the service cover on the Icezone unit by inserting the cover retaining screw
  3. Turn on the Icezone unit by unplugging the wall adapter into the wall outlet

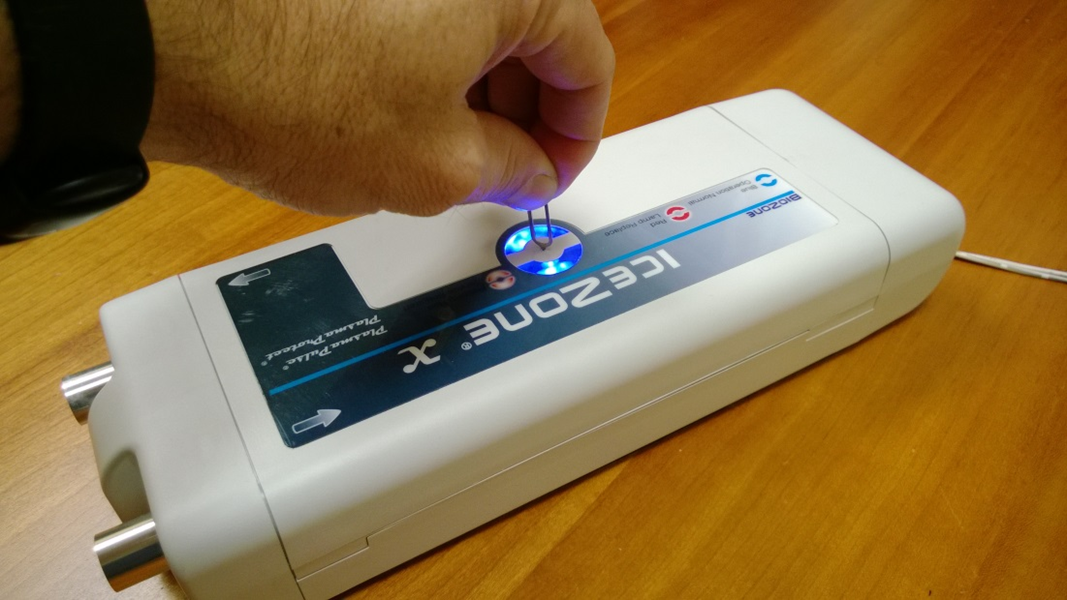

  4. Important: Reset the lamp life counter by holding down the reset tool in the reset hole at the center of the lighted ring for 10-seconds
